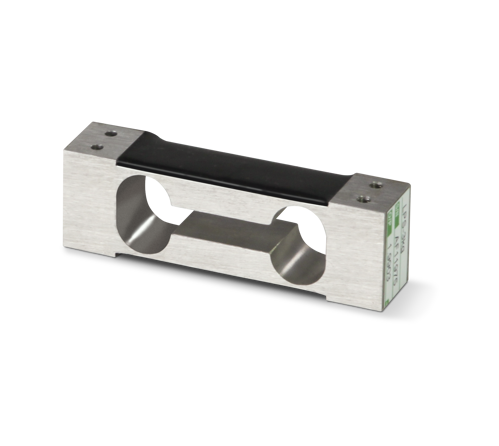

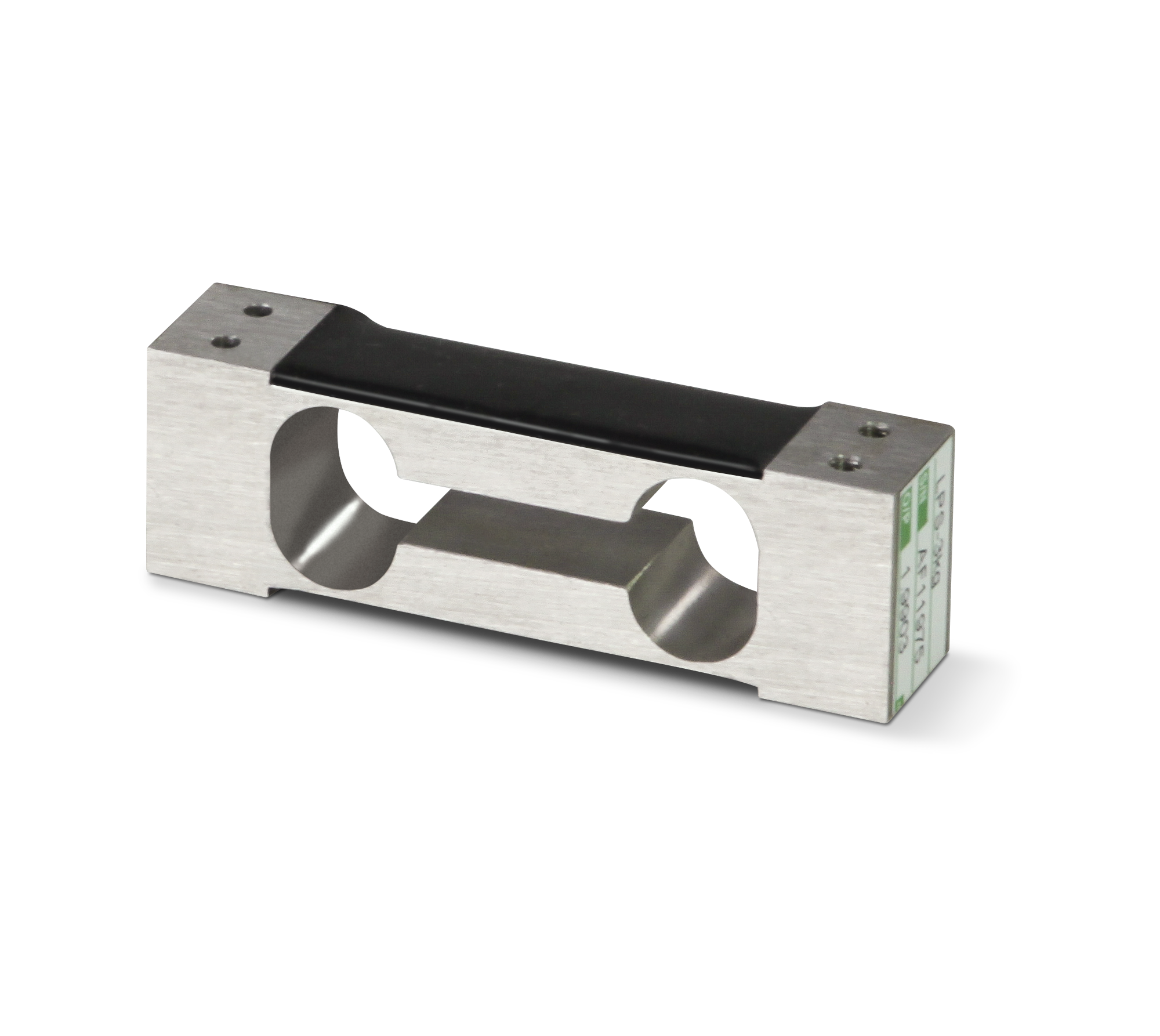

VPG® Celtron® LPS Aluminum, Single Point Load Cell

Ideal for mass production operations, the LPS load cell is constructed of anodized aluminum, fully potted and IP65-rated to protect it against moisture ingress. It's available in NTEP Certified capacities of 3 to 20 kilograms and non-NTEP Certified capacities of 10 to 100 kilograms. It comes with 16.5 meters of cable for the 3- to 25-kilogram unit capacities, 14 inches for the 60-kilogram capacity, and 6.5 feet for the 100-kilogram capacity.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

WARNING: Cancer and Reproductive Harm California Proposition 65

rl-VPG-Celtron-LPS-single-point-load-cell

HD View

LPS Load Cell Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (±3) ohm

Input Resistance:
410 (±15) ohm

Material/Finish:
Aluminum

Temperature:
Compensated: 14 to 104 °F (-10 to 40 °C)
Operating: 0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
0.25% full scale

Non-repeatability:
0.02%

Insulation Resistance:
5,000 megohm

Cable Length:
3 to 35 kg: 1.5 m
60 kg: 6.5 m
100 kg: 6.5 m

Cable Diameter:
4.0 mm
PVC jacket

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Max Platform Size:
350 × 350 mm

Warranty:
One-year limited

Approvals:
NTEP
cFMus

LPS Load Cell Dimensions

Rated Capacity	A	B	C	D	E	F	H	I	T
kg/mm
3	15.0	7.0	58.0	6.0	12.0	70.0	6.0	22.0	M3 × 0.5
6 to 20	30.0	15.0	106.0	12.0	25.0	130.0	12.0	22.0	M6 × 1.0
30 to 35	40.0	15.0	106.0	12.0	25.0	130.0	12.0	22.0	M6 × 1.0
60 to 100	35.0	15.0	117.0	-	-	150.0	-	40.0	M6 × 1.0

Resources/Downloads

Catalogs

Title	Download	Email
Celtron LPS Load Cell Catalog Page	Download	Email

Manuals

Title	Version	Revision	Download	Email	Category	Archived
Load Cell and Weigh Module Handbook		F	Download	Email	Load Cells\|Weigh Modules	No

Sales Literature

Title	Collateral Wizard	Request	Download	Email	Category
Load Cell and Weigh Module Selection Guide		Request	Download	Email	Load Cells\|Weigh Modules

White Papers

Title	Download	Email	Category
Choosing Load Cells for Tough Applications	Download	Email	Load Cells

Parts

NTEP Certified

Part #	Description	List Price	Cart/Quote
41822	Load Cell,SPT LPS-3kg Celtron 16.5in 2mV/V 350 OHM NTEP III 5 S FM Al	List Price: $138.00	View
41823	Load Cell,SPT LPS-6kg Celtron 16.5in 2mV/V 350 OHM NTEP III 5 S FM Al	List Price: $138.00	View
41824	Load Cell,SPT LPS-10kg Celtron 16.5in 2mV/V 350 OHM NTEP III 5 S FM Al	List Price: $138.00	View
41825	Load Cell,SPT LPS-15kg Celtron 16.5in 2mV/V 350 OHM NTEP III 5 S FM Al	List Price: $138.00	View
41826	Load Cell,SPT LPS-20kg Celtron 16.5in 2mV/V 350 OHM NTEP III 5 S FM Al	List Price: $138.00	View

Non-NTEP Certified

Part #	Description	List Price	Cart/Quote
30145	Load Cell,SPT LPS-10KG Celtron 16.5in 2mV/V 350 OHM Al	List Price: $127.00	View
30146	Load Cell,SPT LPS-15KG Celtron 16.5in 2mV/V 350 OHM Al	List Price: $127.00	View
30147	Load Cell,SPT LPS-20KG Celtron 16.5in 2mV/V 350 OHM Al	List Price: $127.00	View
46502	Load Cell,SPT LPS-30kg Celtron 16.5in 2mV/V 350 Ohm Al	List Price: $127.00	View
30148	Load Cell,SPT LPS-35KG Celtron 16.5in 2mV/V 350 OHM Al	List Price: $127.00	View
41149	Load Cell,SPT LPS-60kg Celtron 14in 2mV/V 350 OHM Al	List Price: $127.00	View
41150	Load Cell,SPT LPS-100kg Celtron 6.5FT 2mV/V 350 OHM Al	List Price: $127.00	View
