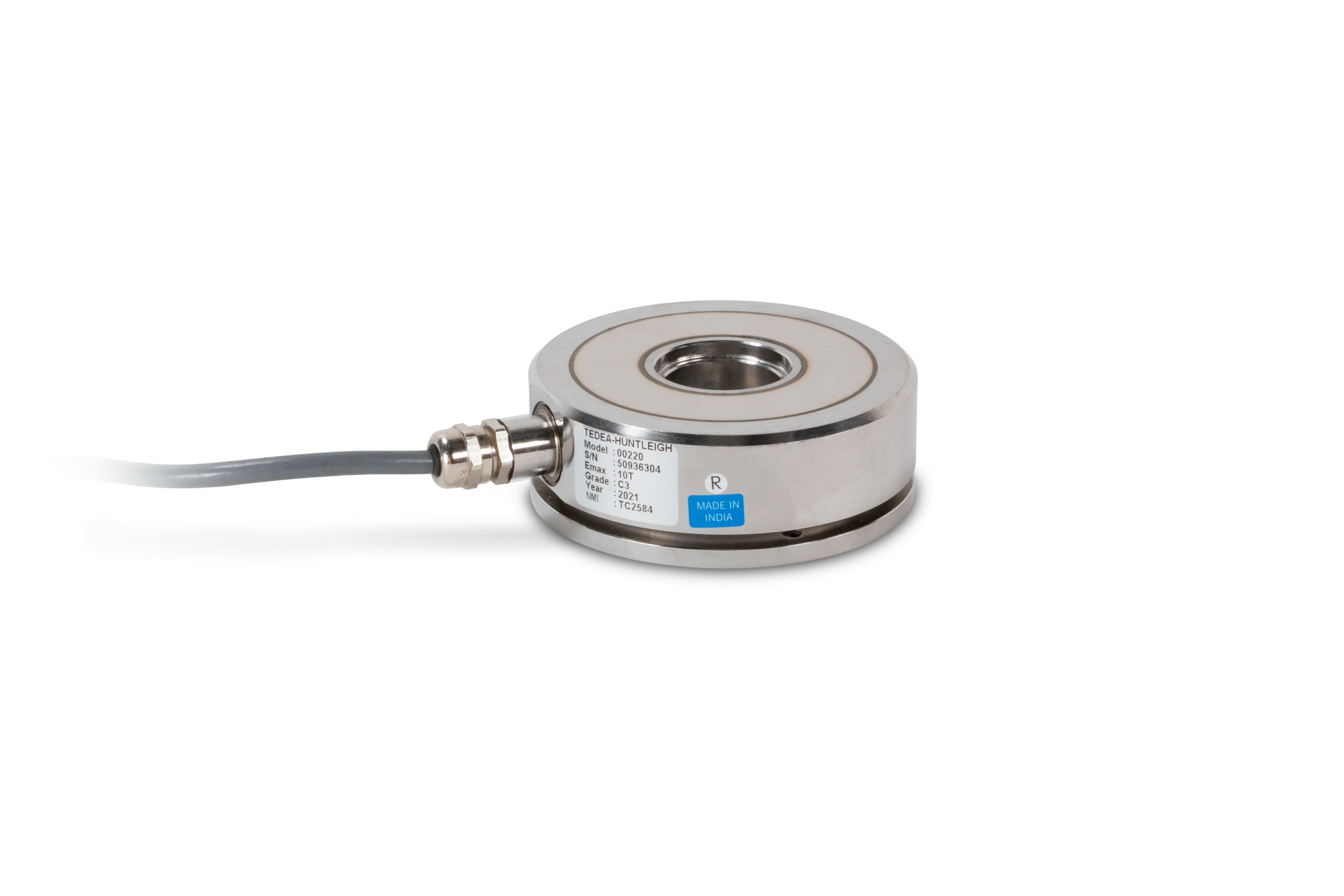

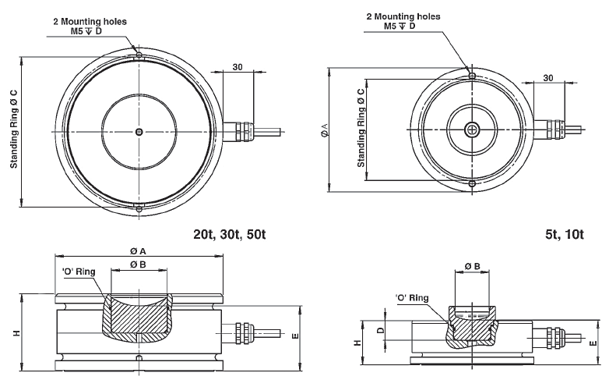

VPG® Tedea-Huntleigh® 220 Stainless Steel, Compression Disk Load Cell

Full Scale Output:
2.0 mV/V

Output Resistance:
1,025 (±20) ohms

Input Resistance:
1,065 (±60) ohms

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
150% at center loading point, full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.020% full scale

Insulation Resistance:
2,000 megohm

Deflection at Capacity:
< 0.5 mm at full scale

Cable Length:
5,000 kg: 5 m
10,000 to 20,000 kg: 10 m
30,000 kg: 20 m

Cable Diameter:
5.6 mm
Polyurethane jacket

Cable Color Code:
Blue +Excitation
Black -Excitation
White +Signal
Red -Signal
Green +Sense
Gray -Sense

Warranty:
One-year limited

Approvals:
OIML
cFMus
